Description:

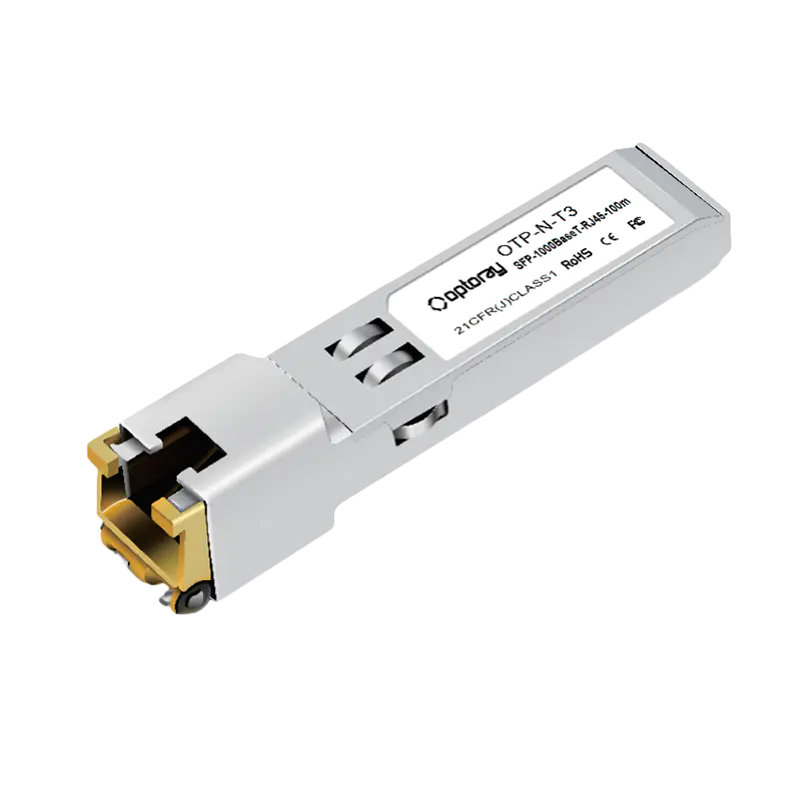

The Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is a high performance, cost-effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data rate up to 100 meters reach over twisted-pair category 5 cable. The Copper SFP Transceiver supports 1000 Mb/s full duplex data links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with a symbol rate of 250Mb/s on each pair. The Copper SFP Transceiver provides standard serial ID information compliant with SFP MSA, which can be accessed with an address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via a 2-wire serial bus at address ACh. The address of the PHY is 1010110x, where x is the R/W bit.
